Revolve
UNSTIRRED DIGITAL WATER BATH
SKU RV-WB
Available configurations
Request a Quote
Pricing on request
Product information
Details & specifications
Details and specifications
Still Bath - Temperature uniformity achieved by convectionl
Full SS Construction
High Quality Glasswool Insulation to prevent overheating
Seamless Deep-drawn stainless steel PAN (SS304)
Rounded corners, and smooth surface to assist in easy cleaning
12L/20L - Drain Tap for emptying conveniently.
Product identity
- SKU
- RV-WB
- Brand
- Revolve
- Category
- Equipment
Specifications
- Temperature range
- Ambient to 99°C
- Control accuracy at 37
- ±0.3°C
- Display Resolution
- 0.1°C
- Countdown timer and audible alarm
- 1 to 999minutes
- Inbuilt Timer Function
- 00:00 to 99:59(HH:MM)
- Set Temp increments
- 0.1degC
- Temperature control
- Microprocessor PID control
- Optional accessories
- SS Cover Lid with Concentric Nylon Rings Or Polycarbonate Lid
- Internal dimensions (WxDxH)
- 330mm x 180mm x 300mm
- Unit External Dimensions (WxDxH)
- 300mm x 150mm x 150mm
- Mains voltage
- 220v - 240v
- Current consumption
- 4A
- Power consumptions
- 700w
- Tank material
- SS 304
- Display
- 7 Segment LED
- Inbuilt temperature probe
- PT-100
- Timer Display
- Yes (Max 99hr:59min)
- Accuracy in temp.
- (+/-) 0.5 Degree
- RPM
- No
- Safety temp limit cut off
- Yes (99 degree)
- Water drain valve
- No
- Media stirrer
- No
- Error setting
- Yes
- 1 point calibration
- Yes
- 2 point calibration
- Yes ( 40°C & 70°C)
- PID settings
- Yes
- Probe error detection
- Yes ( If open probe circuit)
Related products
Revolve

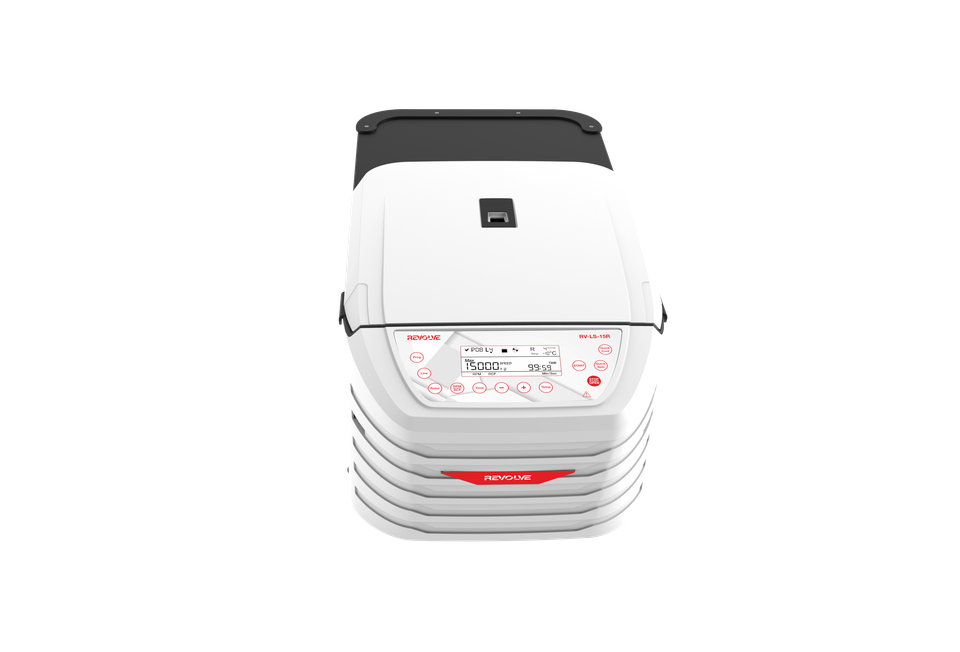

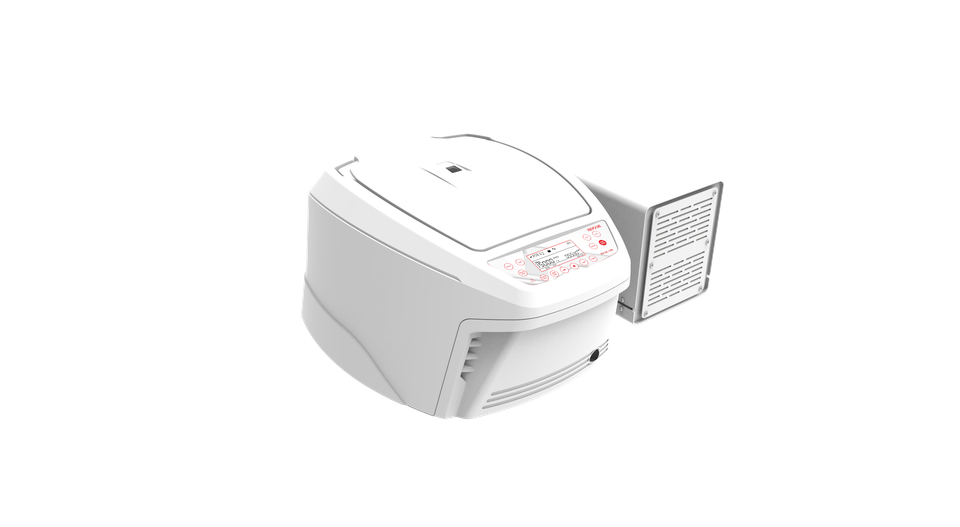

Refrigerated Universal Centrifuge upto 15000 RPM, max capacity 4x100ml
SKU RV-UC-15R
Revolve

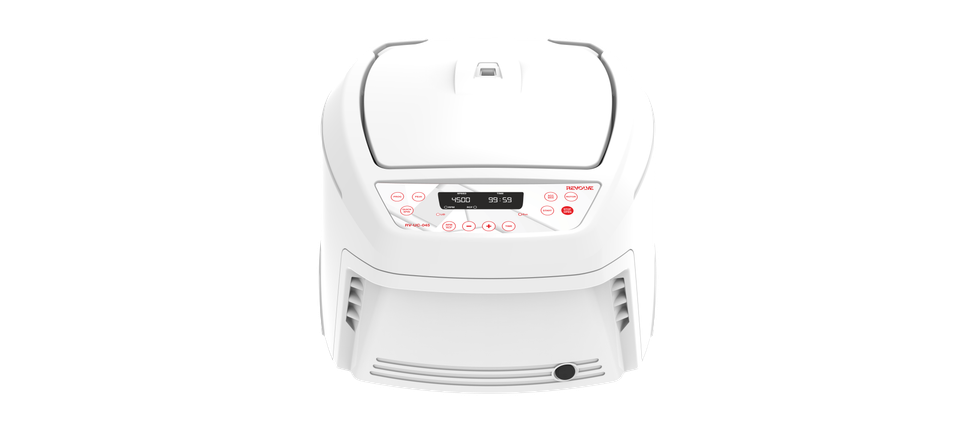

Universal Centrifuge upto 15000 RPM, max capacity 4x100ml
SKU RV-UC-15
Revolve

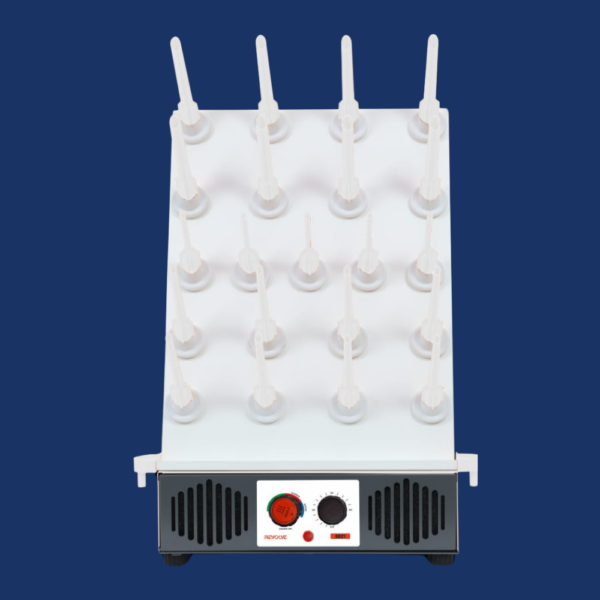

LABORATORY GLASSWARE DRYER
